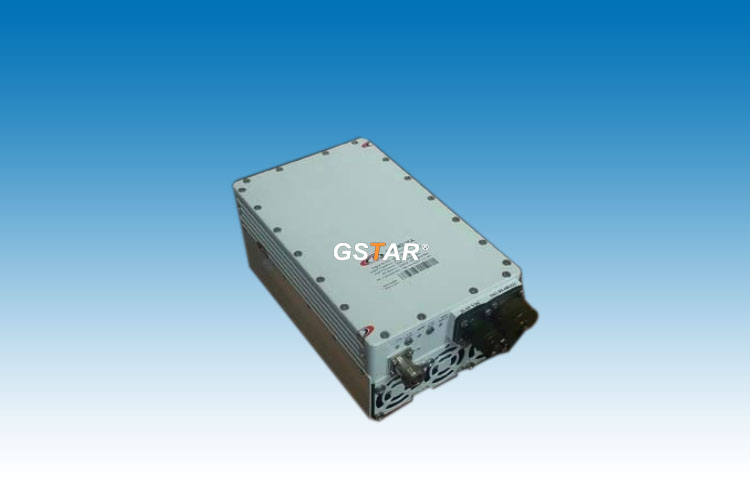

產品名稱： Ka波段功率放大器 Ka Band BUC

產品型號： ABC20UKA / ABC20UKAF

產品概述：

This unique fi rst ever 20W L-To Full Ka-BandBlock Up Converter covers the O3B (27.65-29.1GHz), Commercial 商用(29.0-30.0 GHz) and Military軍用(30.0-31.0 GHz) frequency bands. M&C (FSK)capability enables trouble shooting, monitoring
and controlling the BUC. Unit provides 10MHzreference autosensing feature.
產品特點：

 Output frequency 27.5-31.0 GHz
 Based on GaN technology which enables higheffi ciency, low power consumption and high reliability.
 Quad- L.O. (electronicaly and manually switchable26.55, 27.4, 28.05, and 29.05 GHz)
 Low power consumption (260W max)
 Advanced M&C interface - combined RS-232/485,Ethernet (HTTP and SNMP ver. 3) and optional FSK
 L.O. lock, amplifi er and 10MHz LEDs
 Field-exchangeable (F/N) IF connector
 Internal 10MHz high stability reference autosensingand controlable (optional)
 Built-in redundancy option
 RoHS compliant

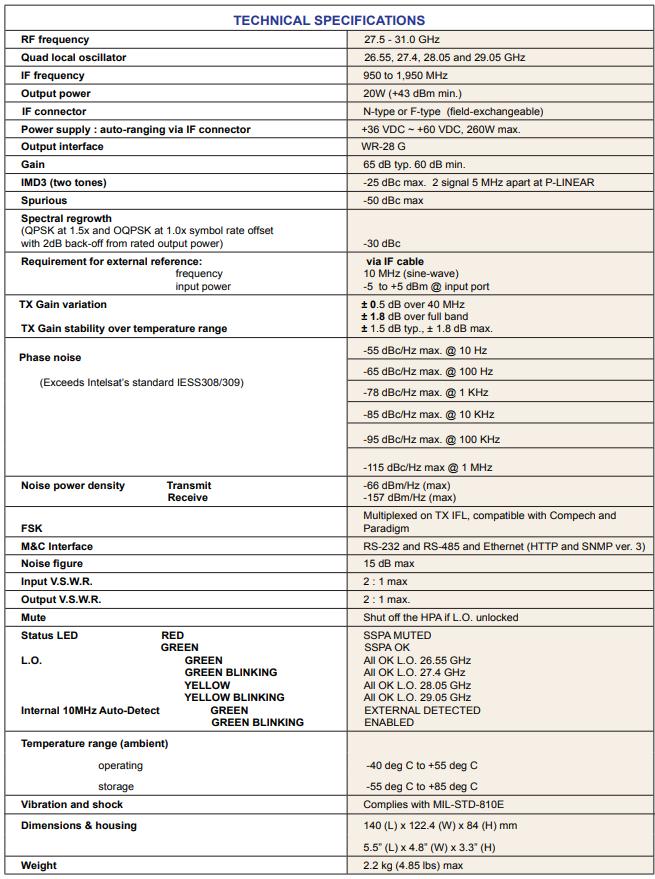

技術數據：

廣州鼎銘視訊器材有限公司致力于提供國際一線品牌的廣電衛通雷達遙感系統設備，包括不限于VAST天線 高頻頭 功率放大器BUC等
